Instrument Shades

Shades can provide a high degree of protection to field equipment at very low cost. They can shield instrumentation from excess temperature rises that might cause a drift in measurement accuracy (and impact reliability), as well as rain, snow, dust and accidental impact.

Shades can provide all the environmental protection required for some applications.In other cases, they can reduce the cost of the cooling systems needed inside protective enclosures. INTERTEC provides two families (SD and DIASHADE) in a large choice of sizes – allowing users to install the optimum shade for any application. A smaller canopy (SD17) suitable for protecting open-air switches and controls is also available.

Instrumentration Shades

DIASHADE SD 37

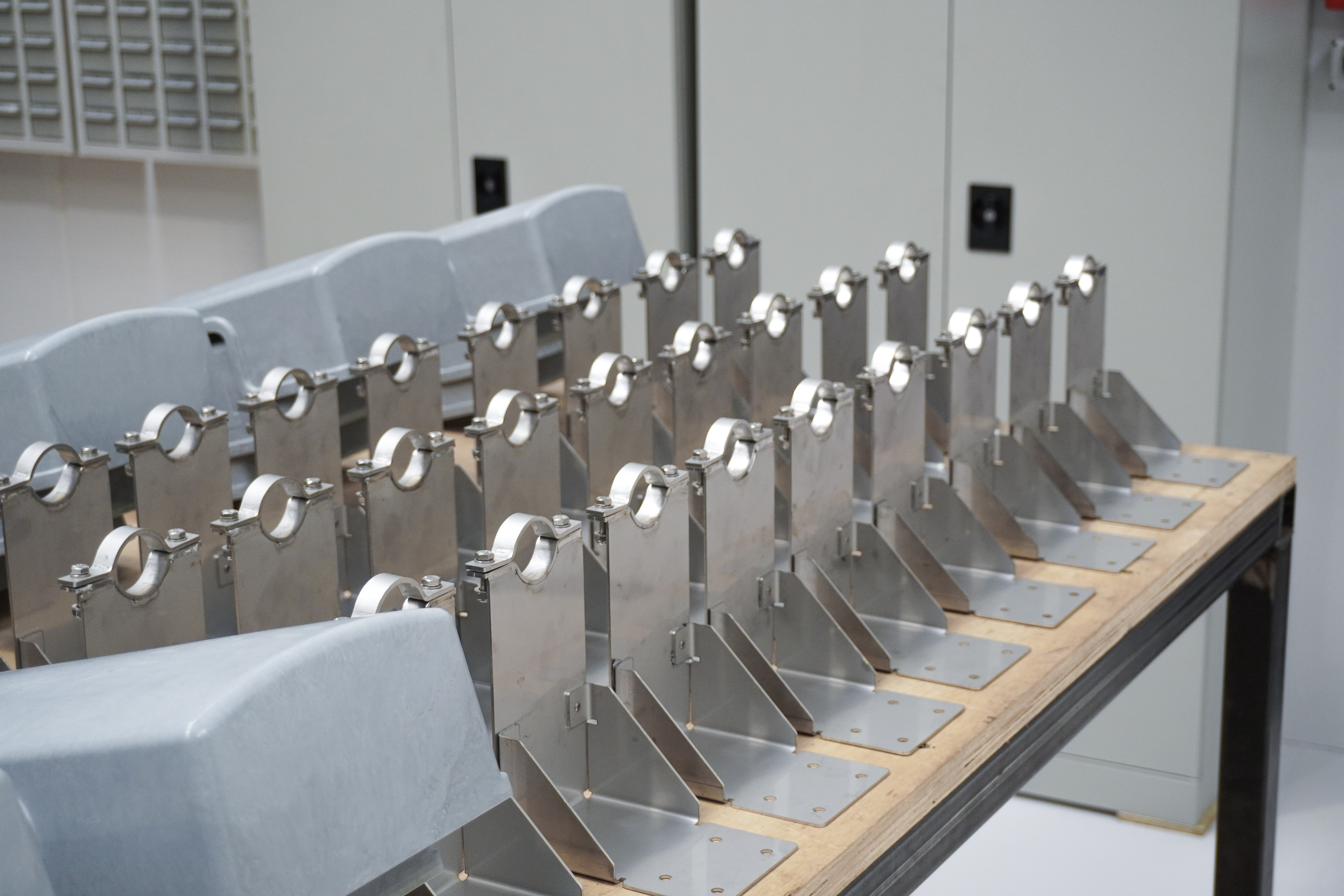

A small canopy with a bracket that allows it to attach directly onto the body of a transmitter (brackets for different instrument manufacturers available).

DIASHADE SD 67

Diagonally sloping sides protect equipment from sun and UV radiation while leaving excellent access to the instrument – to read displays, actuate valves, etc. A choice of sizes provides solutions for single to triple transmitter installations.

SD 50

Material: hot-pressed, glass fibre reinforced polyester

Colour: RAL 7032 light grey

UV-resistant Low flammability and self-extinguishing

SD 150

Material: hot-pressed, glass fibre reinforced polyester

Colour: RAL 7032 light grey

UV-resistant Low flammability and self-extinguishing
